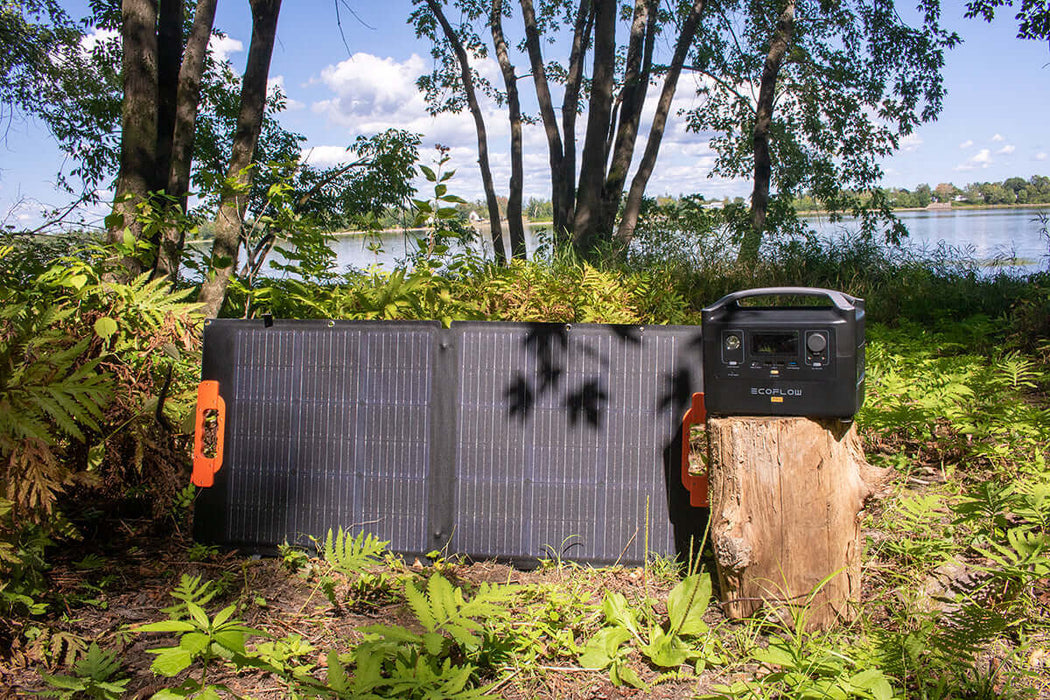

Our exclusive Kedron Solar® 100 Watt Lightweight Folding Solar Kit is designed specifically for charging portable solar generators such as the EcoFlow, Bluetti, Jackery, Energizer ARC, Goal Zero - and more!
Connect up to 4 x 100 Watt Kit panels together using our Y-Branch Connectors! *Make sure to check with your particular solar generator DC charge input rating before connecting.

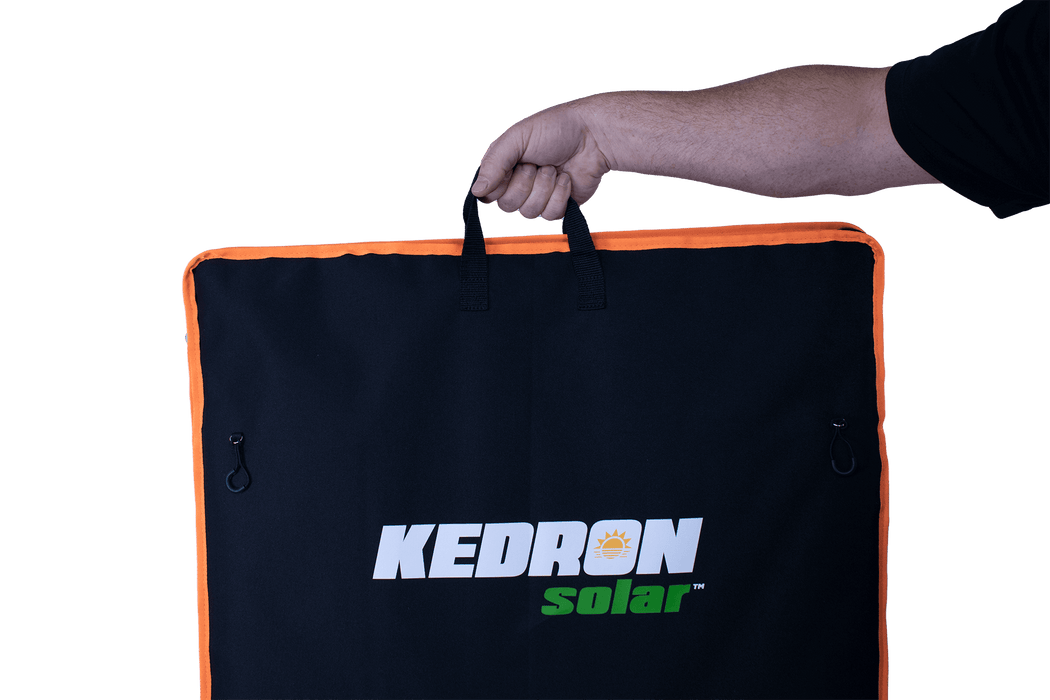

Constructed with portability, ease of transportation, and versatility in mind, this ETFE coated solar panel kit is UV protected and comes complete with a carrying case to accommodate the various charge cords and adapters. The entire kit weighs less than 12lbs, and the solar panel itself is less than 8lbs and has built-in handles making repositioning easy.
Included charging cords
- Main Cable: 10FT Anderson to MC4
- 1.5FT MC4 to Anderson
- 1.5FT MC4 to SAE
- 1.5FT MC4 to M8

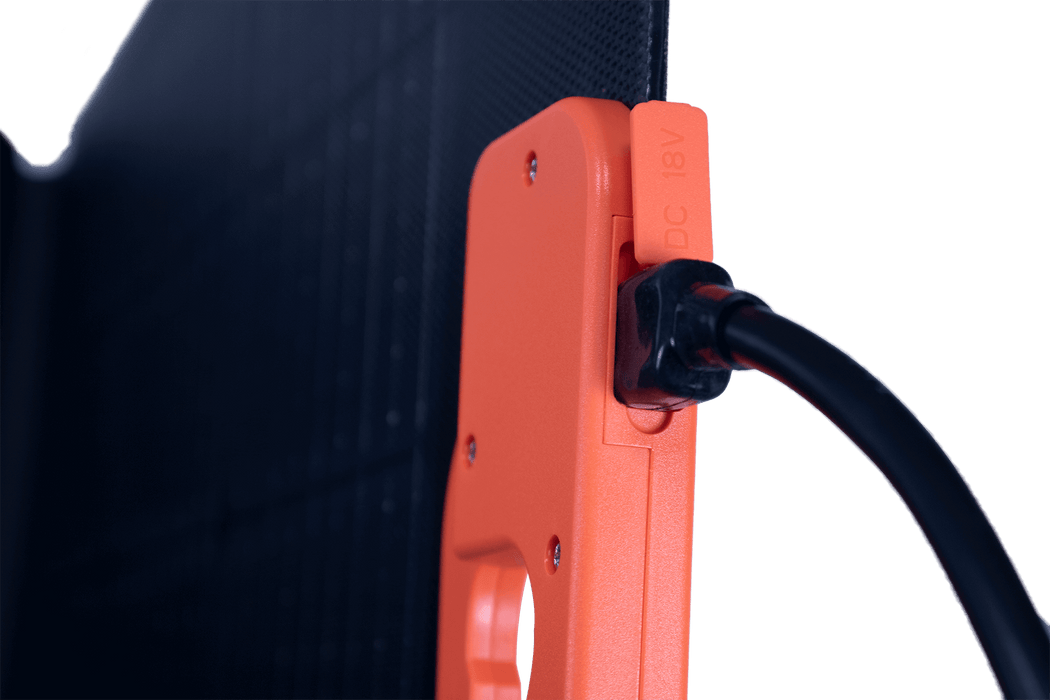

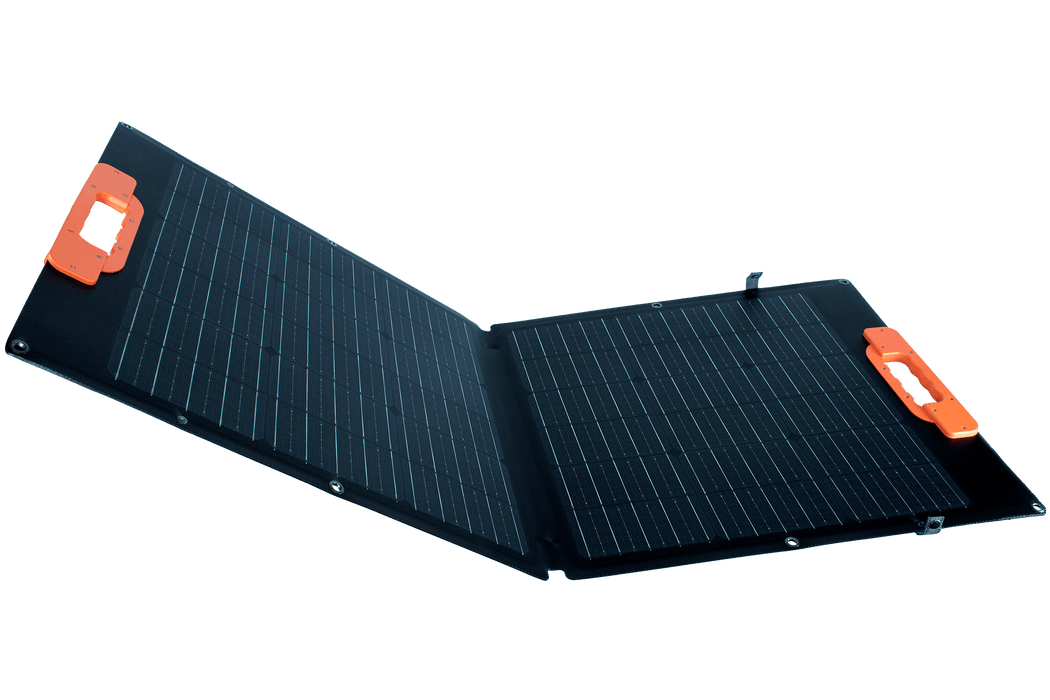

Unfold the solar panel, and place in direct sunlight. The 10FT Anderson to MC4 cable then connects to the solar panel via the included Anderson socket. You can't mix this up because there's only one way this can be connected :) Choose the adapter that matches your solar generator DC charging input, then plug into the MC4 end of the main cable to create a waterproof connection. Some solar generators such as the Energizer ARC series use a smaller plug adapter, but come with their own MC4 adapter which are able to plug into the Main cable directly.
Note the 10FT cable included must be used to ensure correct polarity.
- Maximum power (Pmax) = 100W
- Open-circuit voltage (Voc) = 23V
- Voltage at Pmax (Vmp) = 19.8V
- Short-circuit current (Isc) = 6.01A
- Current at Pmax(Imp) = 5.56A
- Cells Efficiency(%) = 22.62%
- Maximum System Voltage = 100VDC
- Output power tolerance = ±5%
Operating Temperature = -20~70℃
- Solar cell type = Mono
- Unfolded size = 1246*568*20mm
- Folded size = 568*623*36mm
- Weight = 2.1KG
The Kedron Solar 100 Watt Lightweight Folding Kit come standard with a 1-year warranty covering manufacturing defects, and 5-year performance guarantee on the solar panels.
Pairs nicely with...
Designed specifically for Ecoflow River, Ecoflow River 2, Ecoflow River 2 Max, Ecoflow Delta, Bluetti, GoalZero, and other similar portable power stations.
We gladly accept most unused and unopened merchandise for a full refund within 30 days of purchase (see exceptions below). Simply return the complete product to us in its clean original packaging, accompanied with the original proof of purchase or receipt. Note that the buyer is responsible for return shipping costs.
Unused items with open boxes within 30 days of purchase will be subject to a 10% restocking fee. These items must be returned in the original packaging with all accessories.
Special-order merchandise is not returnable Non-refundable items include: Cleaning or clothing products, hammocks, Coghlans, Aquatabs, and other items as specified Batteries of any kind are not returnable. This includes but is not limited to all flooded acid, sealed/AGM, or LiFePO4 batteries. There are no exceptions*
*It is not possible to measure or guarantee with certainty that a battery has been unused once it has left our warehouse. Accepting a battery return and then reselling to other customers with the presumption of it being unused is not a practice we follow.
All merchandise is subject to the manufactures warranty and will be repaired or replaced as per the manufactures directions. The Cabin Depot™ is a retail business and we do not employ installers. However, we are very happy to assist customers having issues with any products purchased by reaching out to the manufacturer on the customers behalf if needed to help expedite the troubleshooting or warranty process.
The Cabin Depot Ltd. is a retail business exclusively and accepts no liability for DIY installations or equipment selection. It is the customers responsibility to read the manufacturers manuals and installation instructions carefully, ensure all local, provincial, or national building codes are met, and contact a qualified installer or tradesperson if required.
