SEAFLO wash down Kit 4.5GPM 70 PSI

by SEAFLO
$179.99

SEAFLO WASHDOWN KIT - 70PSI

New to The Cabin Depot™ ! Our SEAFLO portable washdown kit is ideal for those looking for a quick way to wash down your ATV, boat deck, car, or for any other general remote cleaning requirement. Just connect 12v power & water source and you'll have pressurized water for your cleaning application!

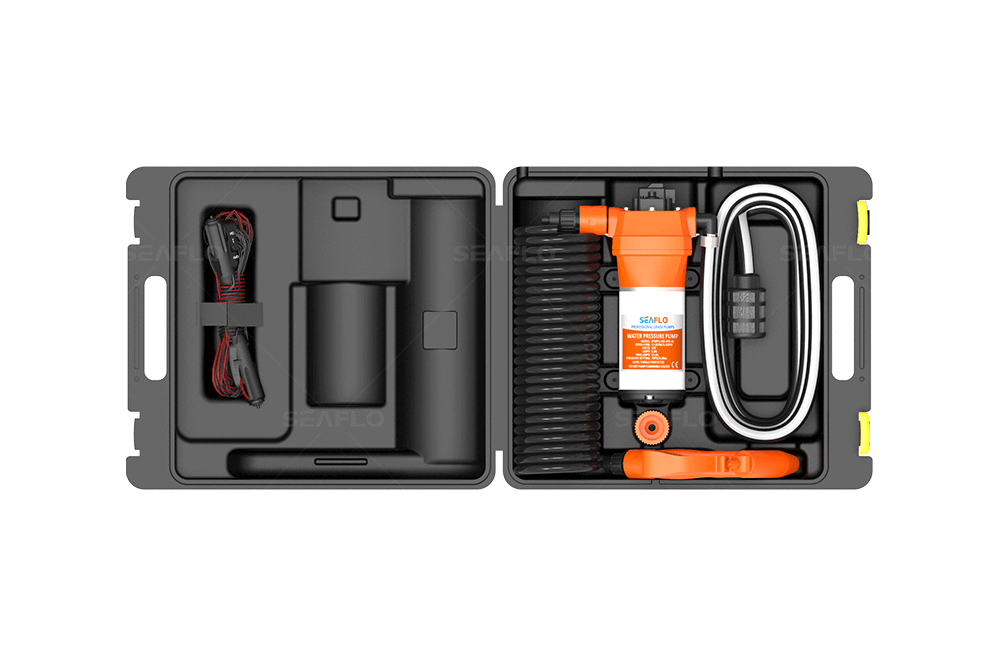

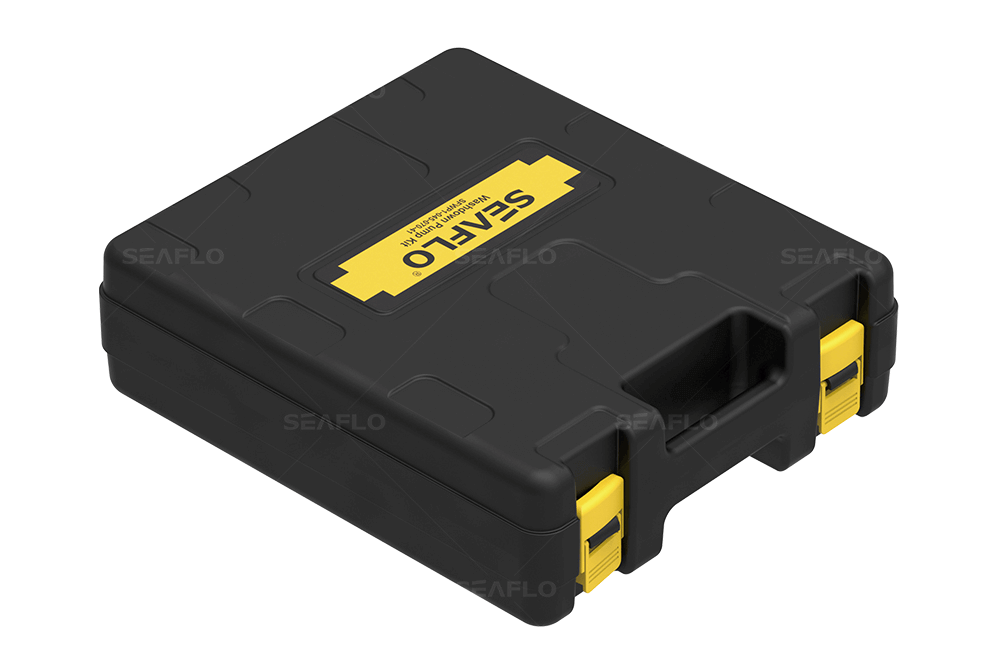

This kit includes a 12v water pump, connections, coiled hose and nozzle. If you're planning to use lake, stream, or other water sources, a strainer is also included to filter out any larger particulates. All of this comes inside a handy hard plastic carrying case for easy storage & transport.

FEATURES & BENEFITS

  • UV-protected coiled hose
  • Easy to use, store, and carry
  • Adjustable sprayer nozzle
  • Built-in bypass valve
  • Smooth water flow when operating
  • Quiet operation
  • 4.5GPM / 17LPM pump providing up to 70psi

TYPICAL APPLICATIONS

  • ATV cleaning
  • Boat deck surface cleaning
  • Farm equipment
  • Other remote applications requiring a pressurized water spray

PUMP
Type: 4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control Type: Pressure switch & Bypass control
Max Recommended Temperature: 60° C(140° F)
Priming Capabilities: 6 feet (1.8 m) suction lift
Re-start Pressure: Shut-off Pressure 70 PSI :56 PSI ±5 PSI (±0.3 bar)
Inlet/Outlet Ports: 3/4” QUICK ATTACH
Weight: 5.0 lbs (2.3 kg)

MOTOR
Leads: 16 AWG, 11" (28 cm) long with 2-Pin connector/Leads
Duty Cycle: Intermittent
Max.Amp Draw: 17.0 A
Fuse: 25.5 A

STANDARD PUMP CONFIGURATIONS
Model: SFWP1-045-070-41
Voltage: 12V
Open Flow (GPM/LPM): 4.5 / 17.0
Control Type: switch & By pass
Max Draw: 17.0 A
Shut-off Pressure (PSI/BAR): 70 / 4.8
Valves: EPDM
Diaphragm Ports: Santoprene
Wire Connections: QUICK ATTACH 2-Pin/Leads

Consult factory for other available models.
