*Includes WIFI communications adapter - exclusive to The Cabin Energy™ !
The SRNE HF2430U60-100 is an ETL certified 24 volt all-in-one hybrid solar unit with an integrated LCD display screen. Incorporating a fully programmable 3000 watt pure sine inverter with 120vAC output, 40A battery charger, and 60A MPPT charge controller this 3 in 1 hybrid solution simplifies your off-grid solar installation saving you time and money!
Highlights
Designed to work with 24vDC battery banks
Multifunction LCD display showing all AC & DC input/output parameters including LED indicators for operating status
Can be programmed to work with lead acid, AGM, LiFePO4, or other common battery storage systems
120vAC output: 3000W pure sine inverter, 4500W surge rated
60A MPPT charge controller capable of handling up to 1600W of PV input @ 100VDC
2-wire autostart capable - will turn generators on/off automatically when programmed (compatible 2-wire autostart generator required)

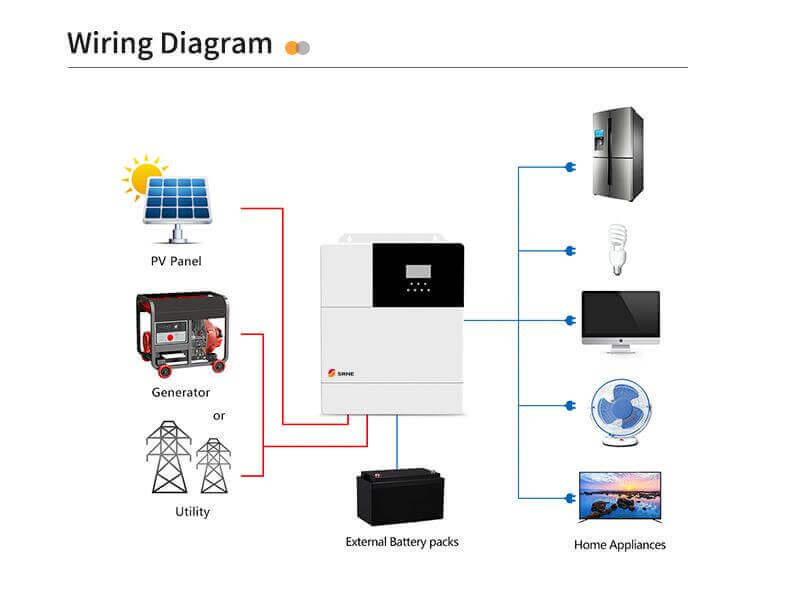

Integrated transfer switch with AC pass-through: powers your building while charging the battery bank with a generator or other AC power source
Variable speed cooling fan
On/Off rocker switch for AC output control

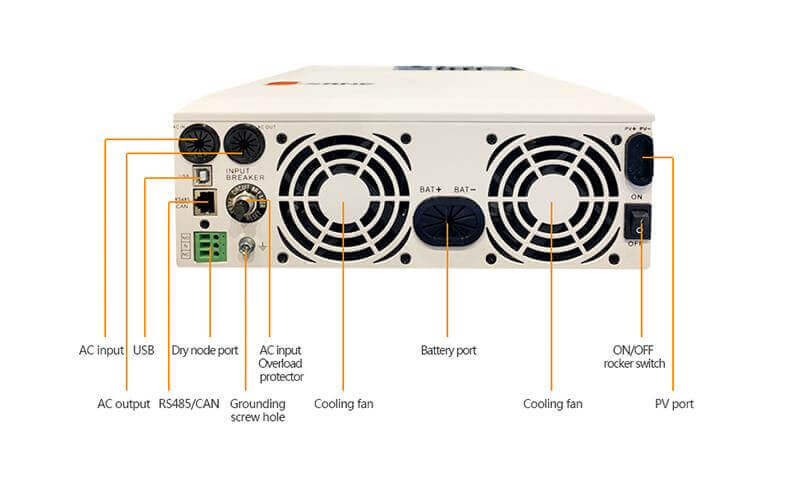

RS485/CAN & USB connections with optional WiFi data logger (sold separately unless otherwise stated)
Protections: PV over current, PV reverse current, PV reverse polarity, AC input over voltage, AC input under voltage, short circuit, overload, and over temperature
Programmable Charging Modes
Hybrid Charging (SNU -Default Setting):This mode is ideal for off-grid applications. The system will use solar PV to charge the battery bank when the sun is shining. If you start your generator, the generator will also charge the battery bank together with solar. At night or during periods of inclement weather, the generator can be started as needed & will charge the battery bank exclusively.
Solar Priority (CSO): This mode is used in a grid-tie application and uses solar PV during the day to charge the battery bank & power AC loads, and grid power at night to maintain the battery bank.
Grid Priority (CUB): This mode is used in a grid-tie application and uses grid power to keep the battery bank charged. If the grid power fails, the system reverts to solar PV battery charging. This would be similar to a UPS backup system.
Solar Only (OSO):This mode uses solar PV charging only. Charging with a generator or grid power is deactivated.
Output Modes
Generator Priority (UTI -Default Setting):In an off-grid application, this mode will use the inverter power via the battery bank, and automatically switch to generator power to service AC loads when the generator is started.
Solar Priority (SOL):this mode will switch the output AC power to grid or generator if the solar PV isn't sufficient. This mode is typically used in a grid-tied situation.
inverter Priority (SBU):this mode uses the inverter as priority AC output power, and will only switch to grid power if the battery bank voltage drops below the minimum preset level.
Qcells Solar Panel Bundle includes: 1920 Watts Total
3 x 480 Watt Q.Peak Duo XL-G10.3 78 Cell Solar Panels
3 x 20FT Pair #10 PV Wire with MC4 Connections
1 x MidNite MNPV6-DISCO string combiner / disconnect
3 x MidNite 15A DC Breakers
Why QCells? Here's why!!
BREAKING THE 21% EFFICIENCY BARRIER
Q.ANTUM DUO Z Technology with zero gap cell layout boosts module efficiency up to 21.6%.
LOW ELECTRICITY GENERATION COSTS
Higher yield per surface area, lower BOS costs and up to 80 watts more module power than standard 144 half-cell modules.
ENDURING HIGH PERFORMANCE
Long-term yield security with Anti LID Technology, Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q™.
EXTREME WEATHER RATING
High-tech aluminium alloy frame, certified for high snow (5400Pa) and wind loads (2400Pa).
A RELIABLE INVESTMENT
Inclusive 12-year product warranty and 25-year linear performance warranty.
STATE OF THE ART MODULE TECHNOLOGY
Q.ANTUM DUO combines cutting edge cell separation and innovative 12-busbar design with Q.ANTUM Technology.
The high-performance module Q.Peak Duo XL-G10.3 is the ideal solution for residential, commercial or utility applications thanks to a combination of its innovative Q.ANTUM DUO Z technology and its cutting edge cell interconnection. This 1500 UL/IEC Solar module ensures superior yields with up to 480 watt power while yielding very low LCOE. (Levelized Cost of Electricity)
Nominal Power - 480 Watts
Efficiency - 21.6% (Compared to 16-18% for most solar panels)
Maximum System Voltage - 1500 (UL) / 1500 (IEC)
Dimensions - 87.2 x 41.1 x 1.38 Inches (Including Frame)
Weight - 58.4 lbs
Snow / Wind Test - 5400 Pa / 3000 Pa
Warranty - At least 98% of nominal power during first year. Thereafter max. 0.5% degradation per year. At least 93.5% of nominal power up to 10 years. At least 86.5% of nominal power up to 25 years.
Kedron LifePo Battery Bundle Includes: 7.2KWH Total

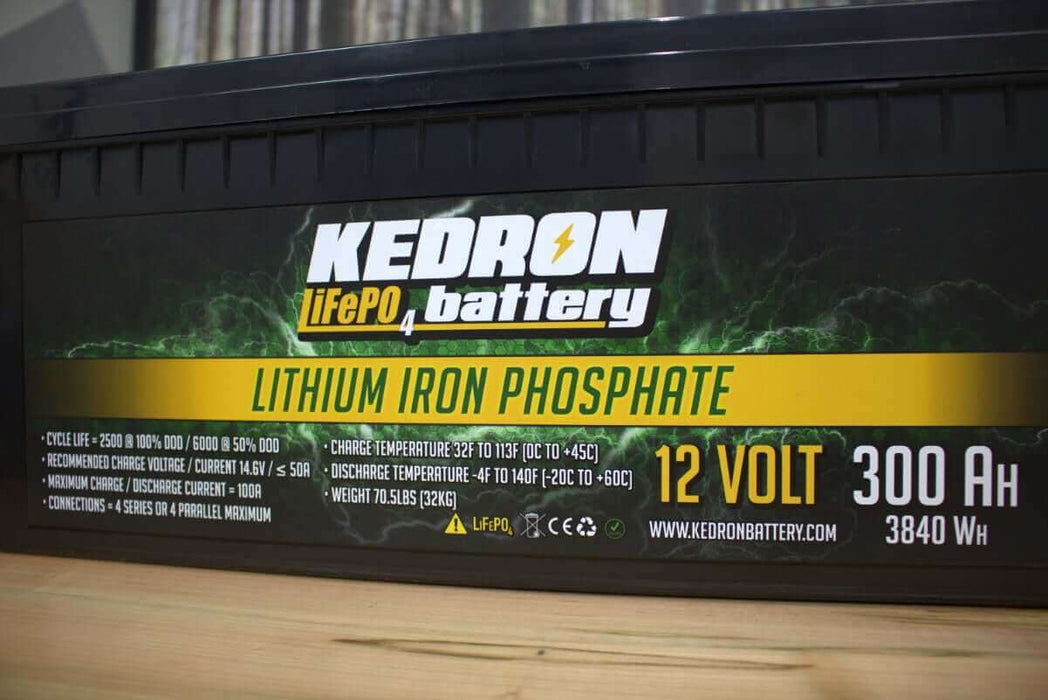

2 x Kedron 12.8V 300AH LifePo Batteries
1 x 16" 2/0 Battery Connect Cables
With exceptional cycle life, our new Lithium Iron Phosphate batteries weigh about 50% less vs equivalent lead-acid battery models, and more importantly, can handle prolonged storage below 50% SOC and deep cycling without damage: No sulfation. No stratification. Less worries.
Highlights
Higher usable capacity & true LiFePO4 performance
12 Volt - 300Ah / 3480Wh capacity
Weight: 70.5lbs (32kg)
Dimensions WxDxH: 19-5/8" x 9-1/2" x 9" (499mm x 241mm x 229mm) including terminal
Integrated battery management system (BMS) for safe charging & discharging
UN3480 compliant, UN38.3 cell certification, and CE system certification
Expected cycle life ~2500 @ 100% DOD / ~6000 @ 50% DOD
Design
Fast charge & discharge performance
Cold weather operating system allows for uninterrupted wintertime use
Recommended charge voltage / current = 14.6V / <50A
Maximum charge / discharge current = 100A
Updated 2022 design: charge & discharge in cold temperatures!
Normal operating temperature range: -22F to 140F (-30C to +60C)
Maintenance-free
Parallel Support = 4 Units max (4 x 12v parallel = 1200Ah @ 12v)
Series Support = 4 Units max (4 x 12v series = 300Ah @ 48v)
60-Month Warranty
Kedron LiFePO4 batteries come with a 36-month warranty for cells beginning at the time of purchase, plus an additional 24-month BMS replacement. In the unlikely event the battery is defective, all warranty claims will need to be accompanied by proof of purchase, installer contact information, and images of the setup including details about the connected equipment and charge profile settings. Warranty will be refused for any batteries deemed to be incorrectly installed or abused.
